  2. AQ240F-04-00
AQ240F-04-00

AQ240F-04-00

https://www.induscale.com.mx/web/image/product.template/3090/image_1920?unique=a22bdd0

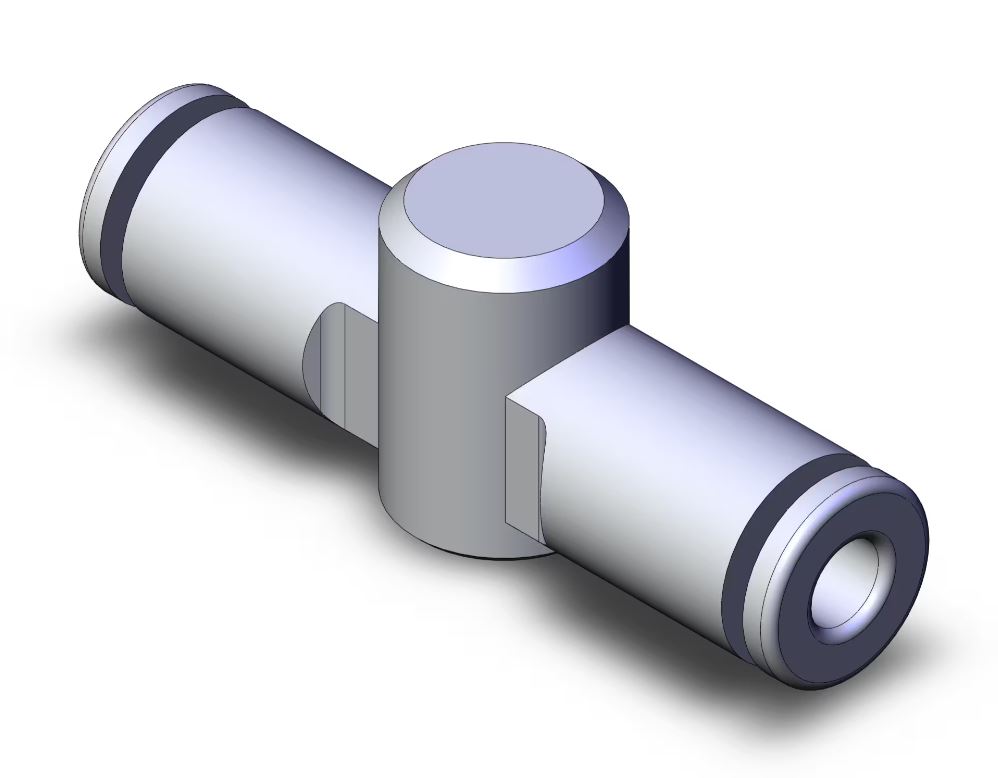

SMC. One-touch pipe joint built-in quick exhaust valve AQ240F/340F series.Kinds: quick exhaust valve body material: [Suzy] IKOUInput port type P (P1): One-touch joint Output side port type A: One-touch jointExhaust port type R: One-touch joint Working pressure range (MPa): 0.1~1Effective cross-sectional area in the forward direction (mm2): 1.7 Effective cross-sectional area exhaust (mm2): 2.5Sonic conductance IN?OUT [dm3/(s bar)]: 0.34 Applicable tube outer diameter d (mm): 4 EXH port: Built-in silencer

$ 42.44 42.44 USD $ 42.44 + IVA (USD)

$ 830.60 + IVA (USD)

Not Available For Sale

Esta combinación no existe.

Contáctenos
SMC

Términos y condiciones

Se embarca de 1-2 días hábiles si hay existencias.

Precio en dólares estadounidenses (USD).

SMC. One-touch pipe joint built-in quick exhaust valve AQ240F/340F series.Kinds: quick exhaust valve body material: [Suzy] IKOUInput port type P (P1): One-touch joint Output side port type A: One-touch jointExhaust port type R: One-touch joint Working pressure range (MPa): 0.1~1Effective cross-sectional area in the forward direction (mm2): 1.7 Effective cross-sectional area exhaust (mm2): 2.5Sonic conductance IN?OUT [dm3/(s bar)]: 0.34 Applicable tube outer diameter d (mm): 4 EXH port: Built-in silencer.
